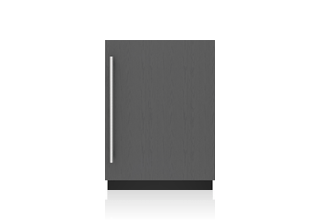

24" Designer Undercounter Refrigerator/Freezer with Ice Maker – Panel Ready

Owners guides and accessories

Get the most out of your appliances with informative user guides. Discover filters, cleaning kits, and accessories compatible with your specific products.
Technical Specifications
Dimensions 24"W x 34 1/2"H x 23 1/8"D
Refrigerator Capacity 3.0 cu. ft.
Freezer Capacity 1.7 cu. ft.
Weight 134 lbs
Energy Star
Star-K Certified
Model Options
DEU2450CI/R
DEU2450CI/L
CAD Libraries

Illustrations

Electrical Requirements
Electrical Supply 115 VAC, 60 Hz
Electrical Service 15 amp dedicated circuit

Electrical Location Illustration

Plumbing Requirements
Plumbing Supply 1/4" OD copper, braided stainless steel or PEX tubing
Plumbing Pressure 35-120 psi
