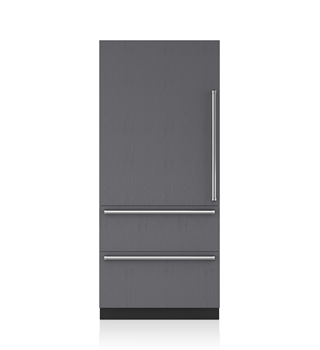

Legacy Model - 36" Designer Over-and-Under Refrigerator/Freezer with Ice Maker - Panel Ready

Owners guides and accessories

Get the most out of your appliances with informative user guides. Discover filters, cleaning kits, and accessories compatible with your specific products.

Filters and Cleaning Accessories

Replacement and Add-on Accessories

Technical Specifications
Dimensions 36"W x 84"H x 24"D
Refrigerator Capacity 12.8 cu. ft.
Freezer Capacity 6.2 cu. ft.
Door Clearance 34 1/2"
Drawer Clearance 18 3/8"
Star-K Certified
Due to a change in insulating materials, this model no longer meets Energy Star requirements. This change will result in net increases of no more than 64 kilowatt hours in energy usage and $8.00 USD in operating cost per annum.
Model Options
IT-36CI-LH
IT-36CI-RH
CAD Libraries

Illustrations

Electrical Requirements
Electrical Supply 115 VAC, 60 Hz
Electrical Service 15 amp dedicated circuit

Electrical Location Illustration

Plumbing Requirements
Plumbing Supply 1/4" OD copper, braided stainless steel or PEX tubing
Plumbing Pressure 35–120 psi
