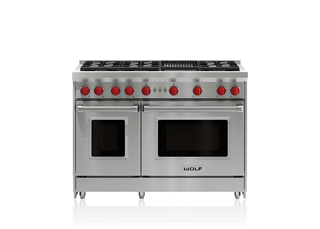

48" Gas Range - 6 Burners and Infrared Charbroiler

Owners guides and accessories

Get the most out of your appliances with informative user guides. Discover filters, cleaning kits, and accessories compatible with your specific products.
Technical Specifications
Dimensions 47 7/8"W x 37"H x 28 3/8"D
Oven 1 Interior Dimensions 13 1/2"W x 18 5/8"H x 17"D
Oven 2 Interior Dimensions 24"W x 18 5/8"H x 17"D
Oven 1 Usable Capacity 1.6 cu. ft.
Oven 2 Usable Capacity 2.9 cu. ft.
Oven 1 Overall Capacity 2.5 cu. ft.
Oven 2 Overall Capacity 4.4 cu. ft.
Door Clearance 19 1/2"
Star-K Certified
Model Options
GR486C
GR486C-LP
CAD Libraries

Illustrations

Electrical Requirements
Electrical Supply 110/120 VAC, 50/60 Hz
Electrical Service 15 amp dedicated circuit

Electrical Location Illustration

Gas Requirements
Gas Supply 3/4" ID line
Gas Inlet 1/2" NPT female

Gas Supply Illustration
