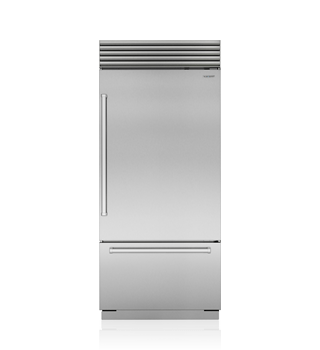

36" Classic Over-and-Under Refrigerator/Freezer
Owners guides and accessories
Get the most out of your appliances with informative user guides. Discover filters, cleaning kits, and accessories compatible with your specific products.
Replacement and Add-on Accessories
Technical Specifications
Dimensions | 36"W x 84"H x 24"D |
Refrigerator Capacity | 15.5 cu. ft. |
Freezer Capacity | 5.2 cu. ft. |
Weight | 547 lbs |
Energy Star | |
Star-K Certified |
Model Options
CL3650U/S/P/L | |
CL3650U/S/P/R | |
CL3650U/S/T/L | |
CL3650U/S/T/R |
View the Legacy Model's Specifications page for information about previous models.
Installation Guides
Electrical Requirements
Electrical Supply | 115 VAC, 60 Hz |
Electrical Service | 15 amp dedicated circuit |
Electrical Location Illustration
Plumbing Requirements
Plumbing Supply | 1/4" OD copper, braided stainless steel or PEX tubing |
Plumbing Pressure | 35–120 psi |
