BI-42UFDID/O

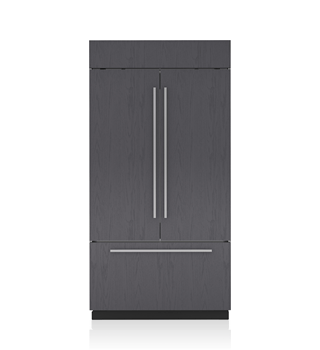

42" Built-In French Door Refrigerator/Freezer with Internal Dispenser - Panel Ready

Sub-Zero42" Built-In French Door Refrigerator/Freezer with Internal Dispenser - Panel Ready BI-42UFDID/O

Guides

Technical Specifications

Dimensions 42"W x 84"H x 24"D
Door Clearance 22 1/4"
Drawer Clearance 23 5/8"
Weight 582 lbs
Refrigerator Capacity 17.9 cu. ft.
Freezer Capacity 6.3 cu. ft.
Star-K Certified

CAD Libraries

Dimensions

Standard Installation

Electrical Requirements

Electrical Supply 115 VAC, 60 Hz
Electrical Service 15 amp dedicated circuit

Electrical Location Illustration

Plumbing Supply Illustration

Model Options

BI-42UFDID/O

Feature Overview

- Discreet interior water dispense with advanced filtration
- LED Lighting for brighter interior
- Overlay design accepts cabinetry panels of all kinds
- Maximum capacity in a 42" French door model
- Dual refrigeration keeps food fresher longer
- Air purification system fights spoilage, odors
- Crispers and deli drawers in low-temp, high-humidity zones for optimum freshness
- Microprocessor control assures peak performance
- Two-column shelving for customized storage
- Soft-close deli drawer for meats, cheeses and more
- Freshness cards for maximum food preservation
- Rigorously tested in our U.S. manufacturing facilities to ensure decades of use
- Exceptional 24/7 support from Madison, WI-based Customer Care team
- Over-and-under refrigerator/freezer storage
- Magnetic door seal system locks in cold air
- Automatic ice maker with "max ice" feature
- Adjustable shelves for maximum convenience

Refrigerator Specifications

- 6 Adjustable glass shelves
- 1 Stationary glass shelf
- 1 Deli drawer with dividers
- 2 Crisper drawers
- 4 Adjustable door shelves
- 2 Stationary door shelves
- 2 Adjustable dairy compartments

Freezer Specifications

- Full-extension roll-out freezer drawer
- Two-tier wire storage baskets
- Automatic ice maker

Accessories

- Grilles for 83" or 88" finished height (84" is standard)
- Stainless Steel Pro Handles
- Stainless Steel Tubular Handles
- Built-In Louvered Grilles
- Built-In Overlay or Flush Inset Grille Frames

Interior View
