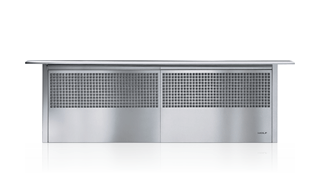

DD45
45" Downdraft Ventilation
Guides
PDF
Technical Specifications
- Dimensions 45"W x 14"H x 2"D
- Weight 85 lbs
ZIP
DWG
Dimensions
cooktop-installation
Electrical Requirements
- Electrical Supply 110/120 VAC, 60 Hz
- Electrical Service 15 amp dedicated circuit
Electrical Location Illustration
Model Options
- DD45
Feature Overview
-
- Rigorously tested for decades of use
- Exceptional support from our Customer Care team in Madison
- Rises 14 inches to whisk away smoke and odors
- Lowers when not in use
- Heavy-gauge stainless steel
- Remote control operation from up to 9' away
- Blower required (internal, in-line or remote blowers available)
- Delay-off feature
- Delay-off feature shuts off blower after approximately 5 minutes
- Reversible motor box can be installed on either side of the downdraft
- Adjustable discharge lets you negotiate around ducting
Blower Options
-
- 600 CFM Internal
- 600 CFM Inline
- 600 CFM Remote
- 1200 CFM Remote
discharge
-
- 6" round internal or 10" round inline or remote
