SRT484CG

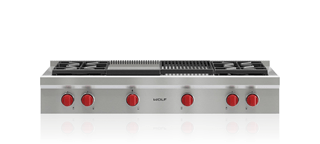

48" Sealed Burner Rangetop - 4 Burners, Infrared Charbroiler and Infrared Griddle

Dimensions

Standard Installation

Electrical Requirements

  • Electrical Supply 110/120 VAC, 60 Hz
  • Electrical Service 15 amp dedicated circuit

Electrical Location Illustration

Gas Requirements

  • Gas Supply 3/4" ID line
  • Gas Inlet 1/2" NPT female

Gas Supply Illustration

Model Options

  • SRT484CG
  • SRT484CG-LP

Feature Overview

    • Rigorously tested for decades of use
    • Exceptional support from our Customer Care team in Madison
    • Signature red infinite control knobs
    • Dual-stacked burners go from 20,000 Btu down to a mere breath of flame
    • Heavy-gauge stainless steel
    • Spark ignition system re-ignites if flame goes out
    • Continuous cast-iron grates for easy movement of pots and pans
    • 4 burners plus 16,000 Btu charbroiler and 15,000 Btu griddle

Rangetop Specifications

    • 1 - 9,200 Btu Burner
    • 1 - 15,000 Btu Burner
    • 1 - 18,000 Btu Burner
    • 1 - 20,000 Btu Burner
    • 1 - 15,000 Btu Griddle
    • 1 - 16,000 Btu Charbroiler

Accessories

    • Stainless steel, brass or chrome bezels
    • High altitude conversion kit
    • 5" and 10" stainless steel risers, and 20" riser with shelf
    • Signature red, black or stainless steel control knobs
