PRO3650

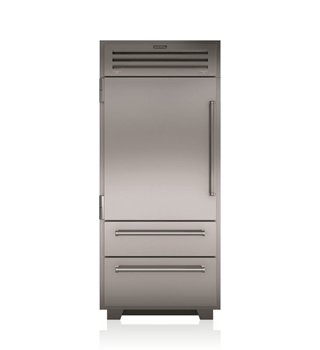

36" PRO Refrigerator/Freezer
Guides
PDF
Technical Specifications
- Dimensions 36"W x 84"H x 24"D
- Door Clearance 37 3/8"
- Drawer Clearance 26"
- Weight 630 lbs
- Refrigerator Capacity 18.4 cu. ft.
- Freezer Capacity 4.3 cu. ft.
- Star-K Certified
ZIP
Dimensions
Standard Installation
Electrical Requirements
- Electrical Supply 115 VAC, 60 Hz
- Electrical Service 15 amp dedicated circuit
Electrical Location Illustration
Plumbing Requirements
- Plumbing Supply 1/4" OD copper, braided stainless steel or PEX tubing
- Plumbing Pressure 35 - 120 psi
Plumbing Supply Illustration
Model Options
- PRO3650/LH
- PRO3650/RH
Feature Overview
-
- Advanced Air Purification Technology
- Install directly within surrounding cabinetry for built-in, or add accessory panels for freestanding
- Makes an iconic stainless-steel statement, inside and out
- Dual refrigeration technology preserves refrigerated foods with cool, moist air and frozen foods with frigid, dry air
- Easy access to food with full-extension slide-out glass shelf with adjustable gates
- Locks in temperature and humidity with soft-close door hinge and magnetic seal on doors and drawers
- Controls temperature within one degree of setpoint via intuitive exterior touch control panel
- Automatic ice maker with advanced water filtration system
- Control brightness with soft-on LED lighting that fully illuminates the cavity, making food more visible and less likely to hide
Refrigerator Specifications
-
- LED refrigerator and freezer lights
- 4 glass refrigerator shelves (3 adjustable; 1 full-extension slide-out)
- 1 high-humidity crisper drawer with adjustable dividers
- 2 stainless-steel slide-out bins
- Air purification system
Freezer Specifications
-
- 1 full-extension roll-out freezer drawer with automatic ice maker and removable ice container
Interior View
