DF486C

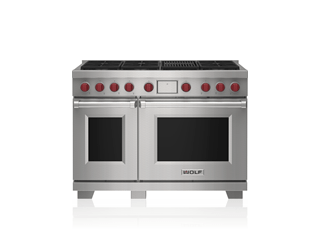

48" Dual Fuel Range - 6 Burners and Infrared Charbroiler

dimensions

standard-installation

electrical-requirements

  • electrical-supply 240/208 VAC, 60 Hz
  • electrical-service 50 amp dedicated circuit

electrical-location-illustration

gas-requirements

  • gas-supply 3/4" ID line
  • gas-inlet 1/2" NPT female

gas-supply-illustration

model-options

  • DF486C
  • DF486C-LP

feature-overview

    • Rigorously tested for decades of use
    • Exceptional support from our Customer Care team in Madison
    • Continuous cast-iron grates for easy movement of pots and pans
    • Cobalt blue porcelain interior
    • Dual-stacked burners produce up to 20,000 Btu
    • Burners capable of delivering less than 300 Btu for premier simmer performance
    • Dual convection oven for faster, more consistent cooking
    • Spark ignition system re-ignites if flame goes out
    • Heavy-gauge stainless steel
    • Exclusive pivoting control panel
    • Red, black or stainless steel control knobs
    • Temperature probe cooks to ideal doneness and lets you know when it's ready
    • Self clean, delayed start, timed cook, Sabbath mode and more
    • 10 cooking modes make meals easy
    • Second 18" single convection oven
    • 6 dual-stacked burners plus 16,000 Btu infrared charbroiler

top-configuration

rangetop-specifications

    • 1 - 9,200 Btu Burner
    • 2 - 15,000 Btu Burners
    • 2 - 18,000 Btu Burners
    • 1 - 20,000 Btu Burner
    • 1 - 16,000 Btu Charbroiler

accessories

    • Stainless steel, brass or chrome bezels
    • 5" and 10" stainless steel risers, and 20" riser with shelf
