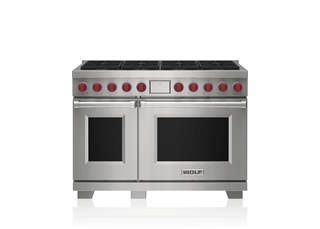

DF48850/S/P
48" Dual Fuel Range - 8 Burners
Guides
PDF
Technical Specifications
- Dimensions 47 7/8"W x 36 1/2"H x 29 1/2"D
- Oven 1 Interior Dimensions 25 1/4"W x 17 1/2"H x 20"D
- Oven 2 Interior Dimensions 13 1/4"W x 17 1/2"H x 19 3/4"D
- Oven 1 Usable Capacity 1.8 cu. ft.
- Oven 2 Usable Capacity 3.2 cu. ft.
- Oven 1 Overall Capacity 2.7 cu. ft.
- Oven 2 Overall Capacity 5.1 cu. ft.
- Door Clearance 21"
- Weight 750 lbs
- Star-K Certified
ZIP
DWG
Dimensions
Standard Installation
Electrical Requirements
- Electrical Supply 240/208 VAC, 60 Hz
- Electrical Service 50 amp dedicated circuit
Electrical Location Illustration
Gas Requirements
- Gas Supply 3/4" ID line
- Gas Inlet 1/2" NPT female
Gas Supply Illustration
Model Options
- DF48850/S/P
- DF48850/S/P/LP
Feature Overview
-
- Wolf’s patented gas dual-stacked, sealed burner design provides precise high-to-low temperature control and a spark ignition system that reignites the burner automatically
- Wolf’s Dual VertiFlow™ convection system provides reliably even heat, reduces hot and cold spots, and enables consistent multi-rack cooking
- Gourmet Mode features nearly 50 presets that automatically control the oven to ensure delicious results
- Ten cooking modes, including Bake, Broil, Convection, Convection Roast, Dehydrate, Gourmet, Proof, Roast, Stone, and Warm, were developed by Wolf chefs to maximize the performance of your oven
- Eight dual-stacked burners produce up to 20,000 Btu for fast boils and intense sears and 300 Btu for true simmers and worry-free melts
- For improved temperature control and safety, the spark ignition system reignites burners automatically
- The full-color touchscreen is intuitive and easy to read, discreetly hiding away when not in use
- LED backlit control knobs illuminate when in use, indicating which burners are active
- The oven offers self-clean, delayed start, timed cook, and Sabbath features
- The temperature probe alerts you when your dish has reached the desired temperature
- The oven’s Wi-Fi enabled feature lets you remotely preheat, select modes, and adjust oven temperature from your mobile device
- Create a cohesive look in your kitchen with the range’s stainless construction, pro-style handles, and choice of iconic red, black, brushed stainless, brushed brass, or brushed grey knobs
Top Configuration
Rangetop Specifications
-
- 1 - 9,200 Btu Burner
- 3 - 15,000 Btu Burners
- 3 - 18,000 Btu burners
- 1 - 20,000 Btu burner
Accessories
-
- Stainless steel, brass or chrome bezels
- Signature red, black, brushed stainless, brushed brass, or brushed grey knobs
- Rear Caster Covers
- Front Leg Extension Covers
- Stainless Steel Kickplates
- 5" and 10" stainless steel risers, and 20" riser with shelf
- Signature red, black, brushed stainless, brushed brass, or brushed grey knobs
